functionList.xml - more different 'function' definitions?



  • Hello!

    I try to setup for a macrofile the function list.
    It works so far, for one type of ‘function’
    I want to see also some absolut different ‘functions’

    my macrofile looks like

     BEGINSUB Name=ShowForm
            $DokufolderForm = EditForm($DokufolderForm,"folder_path","values",$folder_path)
     endsub


     <Data> VarName=$DokufolderForm


     Name = make_FolderForm
          Type = Form
          Caption = Sicher Note als TXT von allen Caches im Filter
          Height = 406
          Width = 500

     Name = btn_makeOne
          Type = Button
           Height = 25
          Left = 32
          Top = 104
          Width = 121
          Caption = make one


    I managed to get the ‘BEGINSUB Name=ShowForm’ section

    But I also want to get the name of forms

      Name = make_FolderForm
          Type = Form


    and buttons.

     Name = btn_makeOne
          Type = Button


    Is this possible?

    my (part of) functionList.xml so far which is OK for ‘beginsub’:

    <function
    	mainExpr="(?x)		# free-spacing (see `RegEx - Pattern Modifiers`)
    		(?ms)			 # - ^, $ and dot match at line-breaks
    		^\h*				# optional leading white-space at start-of-line
    		(?:beginsub)		# function type specifier
    		\s+
    		(?:name)
    		\K				# discard text matched so far
                        .*?                                                 # whatever, until...
                         (\n)                                                   # ...end-of-function-header indicator
    					"
    >


    Thank you!



  • Try this one:

    				<function
    					mainExpr="(?x)                                              # free-spacing (see `RegEx - Pattern Modifiers`)
    							(?ms)                                               # - ^, $ and dot match at line-breaks
    							^\h*                                                # optional leading white-space at start-of-line
    							(?:beginsub\s+)?
    							name\s*=\s*
    							\K                                                  # discard text matched so far
    							\w+
    						"
    				/>



  • Thank you for the answer!
    I’m sorry, but I couldn’t get your part of the code running.

    This snippet works for the subroutine

     <function
        mainExpr="(?x)                                              # free-spacing (see `RegEx - Pattern Modifiers`)
                (?ms)                                               # - ^, $ and dot match at line-breaks
                ^\h*                                                # optional leading white-space at start-of-line
                (?:beginsub)                                      # function type specifier
                \s+
                (?:name)
                \K                                                  # discard text matched so far
                .*?                                                 # whatever, until...
                (\n)                                                   # ...end-of-function-header indicator
            "
    >
        <functionName>
            <nameExpr expr="[\w.^+-]+" />
        </functionName>
    </function>


    and this snippet works for the button part

    <function
        mainExpr="(?x)                                              # free-spacing (see `RegEx - Pattern Modifiers`)
                (?ms)                    # - ^, $ and dot match at line-breaks
                ^\h*                      # optional leading white-space at start-of-line
                (?:name)              # function type specifier
                \s+
                (?:=)
                \K                          # discard text matched so far
                .*?                          # whatever, until...
                (\n)                        # ...end-of-function-header indicator
            "
    >
        <functionName>
            <nameExpr expr="[\w.^+-]+" />
        </functionName>
    </function>


    but both together do not work at the same time

    how can I join both parts at the same time in one functionList.xml to give me both sub + button?
    I’m sorry, my work on regexpression is not more then try and error
    (maybe I will never understand this fancy stuff ;)
    but in this case, I do not know exactly how the functionList.xml works.

    I hope you can help me one more.
    Thank you,
    Andi



  • I’m sorry, but I couldn’t get your part of the code running.

    Didn’t my function part of the parser show anything in the FL tree?



  • No, I’m sorry.
    The functiontree stays empty.

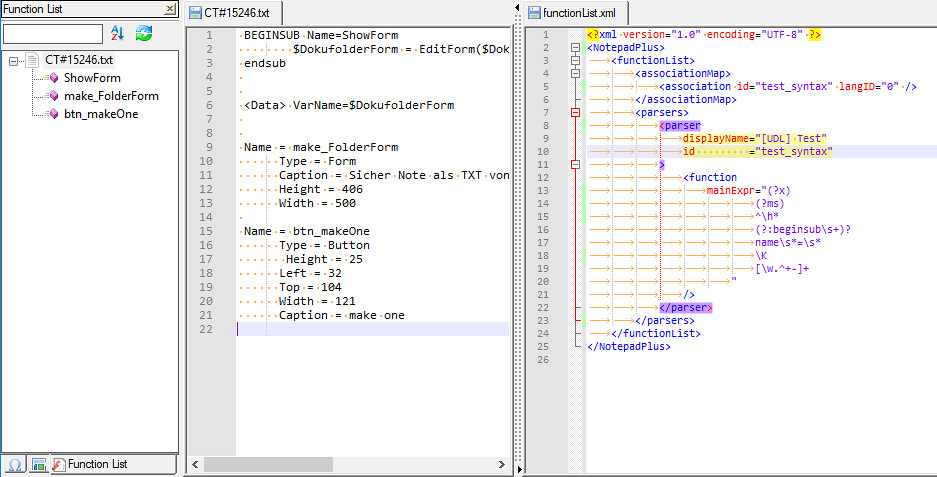

  • Works for me:



  • Hello MAPJe71!!!

    I’m so sorry.
    I do not know what happened, but at first your code did not work, although I tried it more times and started the programm always new.

    But now I had to start my computer new and then it really worked!!!

    So thank you, thank you, thank you.

    Now it is really what I needed!

    I’m always surpriesed how anybody really can understand the crypto writing of regex behind ‘normal’ usage!
    Thank you, solong, Andi



  • Hello, gehe-online,

    The crypto writing of regexes, as you say, are not that difficult. Just an other language, as thousand other ones !

    Regarding the regex, in your functionList.xml file, below :

      mainExpr="
                    (?x)                       # free-spacing (see `RegEx - Pattern Modifiers`)
                    (?ms)                      # - ^, $ and dot match at line-breaks
                    ^\h*                       # optional leading white-space at start-of-line
                    (?:beginsub\s+)?
                    name\s*=\s*
                    \K                         # discard text matched so far
                    [\w.^+-]+
               "


    Here are some non exhaustive explanations, on this regex :

    • First, the (?x) modifier tell the regex engine that the free-spacing mode is ON So, any non-escaped space character, as well as comments, beginning with the # symbol, will be ignored

    • Then, the (?ms) modifiers, which could be rewritten (?m)(?s), means that :

      • The ^ and $ assertions represent, respectively, any start and end of line ( (?m) )

      • The dot . special character matches any single character, even an End of line one, like \r and \n ( (?s) )

    • Now, the part ^\h* represents any sequence, even empty, of horizontal blank characters, at start of line ( note that * is a shortcut for the {0,} quantifier, meaning present 0 or any time )

    • Afterwards, the (?:beginsub\s+)? searches for the beginsub key-word, in any case, followed by, at least, one blank character, as the + quantifer is a shortcut of the {1,} one.

    • As that range is enclosed in a non-capturing group (?.....), followed with the ? quantifier ( which is a shortcut of {0,1} ) this implies that the part beginsub\s+ may be present or not

    • Then, the name\s*=\s* part tries to catch the name key-word, followed by optional blanks chars, then the = sign, and followed, again, with optional blanks chars

    • Now, The \K syntax, tell the regex engine to forget anything matched, so far ! Note that the previous match was mandatory to get an overall match but, now, the regex engine just has to consider the remaining of the regex

    • Thus, the final part, to match, is the regex [\w.^+-]+ which represents a character class feature, that is to say, a single character, enclosed in the [....] structure, which must be present, at least, one time ( remember, + == {1,} quantifier )

    • To end with, any single character, which composes the name, of each key-word NAME, can be, either :

      • A word character ( \w ), that is to say, a classical letter, an accentuated letter, a digit or the _ symbol

      • A circumflex accent ( ^ )

      • A dot punctuation sign ( . )

      • A plus mathematical sign ( + )

      • A minus mathematical sign ( - )


    Remark : for further information on Unicode Blank characters, refer, also, to the link, below :

    https://notepad-plus-plus.org/community/topic/15279/unicode-blank-characters-and-the-regexes-h-v-and-s/1

    gehe online, I hope that, now, you can figure out the general template of a regular expression !

    Best Regards,

    guy038

    P.S. :

    For noob people, about regular expressions concept and syntax, begin with that article, in N++ Wiki :

    http://docs.notepad-plus-plus.org/index.php/Regular_Expressions

    In addition, you’ll find good documentation, about the Boost C++ Regex library, v1.55.0 ( similar to the PERL Regular Common Expressions, v5.8 ), used by Notepad++, since its 6.0 version, at the TWO addresses below :

    http://www.boost.org/doc/libs/1_55_0/libs/regex/doc/html/boost_regex/syntax/perl_syntax.html

    http://www.boost.org/doc/libs/1_55_0/libs/regex/doc/html/boost_regex/format/boost_format_syntax.html

    • The FIRST link explains the syntax, of regular expressions, in the SEARCH part

    • The SECOND link explains the syntax, of regular expressions, in the REPLACEMENT part


    You may, also, look for valuable information, on the sites, below :

    http://www.regular-expressions.info

    http://www.rexegg.com

    http://perldoc.perl.org/perlre.html

    Be aware that, as any documentation, it may contain some errors ! Anyway, if you detected one, that’s good news : you’re improving ;-))
