Other thoughts regarding the "ReWrap Text to (Clipboard or 72) width" of the old "TextFX" plugin

guy038

Hello, All,

Quite by chance, I came across a summary of the features of the old TextFX plugin, and among them, I took another look at the Rewrap feature.

First, note that the rewrap feature is generally VERY difficult to simulate as it heavily depends on current text :

How do we manage tables, sections, lists with bullets or numbers and possible leading indentation of the folded lines ?

Or do we need to join all lines of a text in a single very looooooooong line FIRST, before the wrapping process ?

This topic has been discussed many times. see, for example, the following posts below :

https://community.notepad-plus-plus.org/post/62750, from @peterjones

https://community.notepad-plus-plus.org/post/54147 from mine, where I proposed a generic regex

https://community.notepad-plus-plus.org/post/78262 from @ekopalypse, where he proposed a Python script, created with the @peterjones’s help

https://community.notepad-plus-plus.org/post/58881 from @michael-vincent, where he proposed a NppExec script

If we look at it from the perspective of the old TextFX plugin, it would primarily handle text encoded in ANSI. in other words, text where one char = one byte, for EACH character of the selected text !

So, before the wrapping action, we need to :

Use the Edit > Blank Operations > TAB to Space option, in order to replace any tabulation with the corresponding amount of space chars
Use the Edit > EOL Conversion > Unix (LF) option. However, I don’t think that a single line-ending is really necessary
Use the Encoding > Convert to ANSI option to get an ANSI text

Note that the conversion to ANSI could be a problem if it contains some UNICODE characters, absent from the present ANSI encoding. Luckily, the main characters are both present in the different ANSI encodings and in the Unicode encodings, like UTF-8 ! Anyway, all the few non-decoded characters are generally shown as an interrogation mark, within your converted ANSI text !

Now, you may use the Edit > Line Operations > Join Lines option, first, ONLY IF you would like a strict wraping process throughout all the selected text
Then, you run the wrapping process which can be, either, regex replacement(s) or a Python , Lua or NppExec script

So, I created an ANSI file composed of the license.txt, followed with the change.log file of the N++ v8.9.8 release, named ORG_LF_ANSI.txt

Then I copied this file in some new tabs to test the different scenarios !

In this post https://community.notepad-plus-plus.org/post/54147, I proposed this generic regex replacement :

SEARCH (?-s)^(?=.{C})(?:.{1,C-3}\x20|.{C-1})\K

REPLACE \r\n ( or \n if Unix files )

Which mimics the Edit > Line Operations > Split Lines option

However, it happens that, in last N++ releases, this regex replacement should be, rather :

SEARCH (?-s)^(?=.{C})(?:.{1,C-2}\x20|.{C-1})\K

REPLACE \r\n ( or \n if Unix files )

If I choose the value 78 in the Settings > Preferences > Margins/Boder/Edge > Vertical Edge settings dialog, select all the text and use the Ctrl + I shortcut, the file is strictly identical to the other file using the regex (?-s)^(?=.{78})(?:.{1,76}\x20|.{77})\K with \n as replacement ( Verified with ComparePlus v3.00 )

Now, it seemed that in these identical files, in many lines the wrapping process is done before the column 78, even considering a correct wrapping at end of a word !

So, I imagined this new regex replacement, below :

SEARCH (?-s)^(.{1,C})(?:[\x20\r\n]*\z|\x20*\R|\x20+) ( with C = 78 in our case )

REPLACE \1\r\n if Windows file \1\n if Unix file \1\r if Mac file

Finally, run an Edit > Blank Operations > Trim Trailing Space operation ( or SEARCH \x20+$ and REPLACE with Nothing )

And indeed, the New_LF_ANSI.txt file better respects the 78 limit than the Old_LF_ANSI.txt , as shown below :

BEFORE :

And

AFTER :

And

I also created a New_CRLF_UTF-8.txt file, using the last (?-s)^(.{1,78})(?:[\x20\r\n]*\z|\x20*\R|\x20+) regex and the only differences with the New_LF_ANSI.txt file are :

Because the two chars “ and ” are coded with one byte ( 93 and 94 ) in the ANSI text and coded with three bytes ( E2 80 9C and E2 80 9D ) in the UTF-8 text

Now, the wrapping process of both the TextFX plugin and the Python script are quite different : Here is, successively, a screenshot from the TextFX_ANSI.txt file and from the PythonCRLF_UTF-8.txt file :

You can see, in the change.log section, that lines regarding, obviously, different points are badly concatened in a single line !

Now, if I compare these two files, ignoring all spaces and line-endings, ComparePlus v3.00 returns the picture, below, with differences mostly at end of the license.txt section and in the change.log section !

Finally, I created the NEW_LF_ANSI_Strict.txt file :

I did, first, an Edit > Line Operations > Join Lines operation which changed all text in a very long line ( 37,410 chars )
Then, I applied the following regex replacement against this file
- SEARCH (?-s)^(.{1,78})(?:[\x20\r\n]*\z|\x20*\R|\x20+)
- REPLACE \1\n

Here is a screenshot of the resulting file, showing the end of the license.txt section and the beginning of the change.log section

As you can verify, the reading of this text is rather painful :-((

Best Regards,

guy038

mpheath

@guy038 Seems like regex Wrap versus the others using ReWrap. The test does not appear to be an equal comparison.

The test input files are UnWrapped. ReWrap would probably be for lines that are already Wrapped. Neither of the test files have a fully strict form of paragraphs. The license file is mostly paragraphs except for some lines.

GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007

These 2 lines are supposed to remain as 2 lines, not 1 paragraph. So if treated with ReWrap, would probably result as 1 line.

Wrap can be done with this Lua code:

local function main()
    local maxLineLength = 72
    local line = 0
    local eol = ({'\r\n', '\r', '\n'})[editor.EOLMode + 1]

    editor:BeginUndoAction()

    while 1 do
        local lineLength = editor:LineLength(line)

        if lineLength < 1 then
            break
        end

        if lineLength > maxLineLength then
            local startPos = editor:PositionFromLine(line)
            local endPos = editor.LineEndPosition[line]
            local maxPos = startPos + maxLineLength
            local breakPos

            for i = startPos, endPos do
                local posAfter = editor:PositionAfter(i)

                if posAfter > (i + 1) then
                    maxPos = maxPos + posAfter - i - 1
                end

                if editor.CharAt[i] == 0x20 then
                    if breakPos and i > maxPos then
                        break
                    end

                    breakPos = i
                end
            end

            if breakPos and breakPos < endPos then
                editor:SetTargetRange(breakPos, breakPos + 1)
                editor:ReplaceTarget(eol)
            end
        end

        line = line + 1
    end

    editor:EndUndoAction()
end


main()

It replaces the space <= 72+ to break at with an EOL. Suggest to keep the original unwrapped copy as I have no UnWrap or ReWrap code.

Coises

This post is deleted!

Coises

@guy038 said:

Quite by chance, I came across a summary of the features of the old TextFX plugin, and among them, I took another look at the Rewrap feature.

First, note that the rewrap feature is generally VERY difficult to simulate as it heavily depends on current text :

How do we manage tables, sections, lists with bullets or numbers and possible leading indentation of the folded lines ?

Or do we need to join all lines of a text in a single very looooooooong line FIRST, before the wrapping process ?

As far as I can tell, the old TextFX didn’t handle any of the more complex cases (tables, lists, indentation). I have not been able to find user documentation. The closest reasonably accessible code I could find was this for the rewrap function, which has comments suggesting some fancier processing might be possible, but it doesn’t implement it.

Do any of the scripts or proposals offered so far do anything that can’t be accomplished with the native Split Lines function? Split Lines splits at the edge of the view if you have no vertical edges set, and at the last (or only) vertical edge listed if you do. (So if you list 72 80 it will split at 80; if you list 80 72 it will split at 72.)

What is the problem to be solved?

guy038

Hi, @mpheath, @coises and all,

@mpheath, I first copied the ORG_LF_ANSI.txt file as Lua_LF_ANSI.txt then I ran your last lua script against this file and the files are almost identical, except in the 3 locations below :

Then I copied again the ORG_LF_ANSI.txt file as Lua_CRLF_UTF-8.txt then I ran your last lua script against this file. This time, there are 5 differences, shown below :

Thus, as a conclusion, your Lua script is quite correct but the last regex solution :

SEARCH (?-s)^(.{1,78})(?:[\x20\r\n]*\z|\x20*\R|\x20+)

REPLACE \1\n ( for Unix files ) or \1\r\n ( for Windows files )

Followed with a Trim Trailing Space operation, seems slightly better !

Now, @coises, you said :

What is the problem to be solved?

Well, I just wanted to point out that, in particular cases, a simple wrapping operation may not give the expected display, from the user’s perspective ! In my opinion, it seems better to use the present @mpheath’s Lua script ( or an equivalent Python one ) or the regex solution above rather than the odd solution provided by the TextFX plugin.

Best Regards,

guy038

Oh…, I forgot to tell you, @mpheath, that I changed the line :

    local maxLineLength = 72

By this one :

    local maxLineLength = 78

For all the tests !

mpheath

@guy038 The Change History markers and indicators should be evaluated also as part of the tests. All green markers in the images is suspiciously odd. Perhaps all of the text was pasted and saved which caused that to occur? With Change History showing what changed, the view of what is better may change.

guy038

Hi, @mpheath and All,

Ah… I understand. Thus, I’ve decided to conduct a second round of tests. This time :

The files New_LF_ANSI.txt and New_CRLF_UTF-8.txt were copied from ORG_LF_ANSI.txt as Regex_LF_ANSI.txt and Regex_CRLF_UTF-8.txt
The files Lua_LF_ANSI.txt and Lua_CRLF_UTF-8.txt were copied from ORG_LF_ANSI.txt as Lua_2_LF_ANSI.txt and Lua_2_CRLF_UTF-8.txt

Then, I stopped and restarted N++ : thus, no more change history feature !

Finally, regarding these new created files :

I ran the regex replacement, followed by a Trim trailing Space operation, on files Regex_LF_ANSI.txt and Regex_CRLF_UTF-8.txt
I ran your Lua script on files Lua_2_LF_ANSI.txt and Lua_2_CRLF_UTF-8.txt

So, these four files showed an orange change history color. As you can see on the screenshots, the regex process acted on all lines, but some empty line endings, and your lua script just acted on lines which need wrapping !

Regex process :

Lua process :

However, the comparisons between the regex process and the Lua process shows the same number of differences ( 3 for ANSI files and 5 for UTF-8 files )

Between ANSI files :

Between UTF-8 files

Best Regards,

guy038

mpheath

@guy038 The testing looks better.

If the Change History -> Show in text option is checked then can see changes to a character for more detail. No need to retest and repost images to show the indicators.

A change of the regex pattern to:

Find:

(?-s)^(?=.{79}).{1,78}\K\x20(?!\R)

Replace:

\r\n

and then press the Replace All button.

It does replace less as it does not capture and so only the \x20 space is matched. Unfortunately, it will read the line to length of 79 and then read the line again if line is 79 to continue the pattern so might be slower then your previous tested pattern. The (?=.{79}) is needed to ensure shorter lines are not matched for wrapping. The (?!\R) is probably optional to have in the pattern as it is limited to detecting trailing spaces. Since the pattern uses \K, then the Replace button is not expected to function properly to step through the replacements.

The text comparison in my testing shows the regex patterns achieve equal results which seems to be fortunate. That test was done on license.txt.

guy038

Hi, @mpheath and All,

@mpheath, from your advice, I finally chose the following process :

First, run a Edit > Blank Operations > TAB to Space option
Then run the regex replacement below, where C represents the maximum number of chars after you want a line-break :
- SEARCH [\x20\r\n]*\z|(?-s)^(?=.{C+1,}).{1,C}\K(?:\x20*\R|\x20+)
- REPLACE \r\n for Windows files or \n for Unix files
Finally, run a Edit > Blank operations > Trim Trailing Space option

Remarks :

I began the regex with [\x20\r\n]*\z which will replace possible mixed range of spaces and new lines, at the very end of current file, with a single line-ending
I used the (?-s)^(?=.{C+1,}) ( instead of the (?-s)^(?=.{C+1}) as it seems slightly faster within huge files !
Compare to your regex, I still wanted to consider all spaces, possibly followed with a line-break. So, the part .{1,C}\K(?:\x20*\R|\x20+)
Note that the final Trim Trailing Space action is necessary because of this specific case with a splitting after column 40

12345678901234567890123456789012345     ABCDE

12345678901234567890123456789012345
ABCDE

Now, let’s try it out with a concrete example :

Double-click on https://www.gutenberg.org/cache/epub/2701/pg2701.txt => The text of the novel Moby Dick or The Whale should appear
Go to the second occurrence of the string CHAPTER 1. Loomings.
Select from this line to the line END OF THE PROJECT GUTENBERG EBOOK MOBY DICK; OR, THE WHALE, excluded
Paste it in a N++ new tab and name it Moby_ORG.txt

So, the Moby.ORG.txt file should begin and end with :


Call me Ishmael. Some years ago—never mind how long precisely—having
little or no money in my purse, and nothing particular to interest me
on shore, I thought I would sail about a little and see the watery part
of the world. It is a way I have of driving off the spleen and
regulating the circulation. Whenever I find myself growing grim about
...
...
...
...
unharming sharks, they glided by as if with padlocks on their mouths;
the savage sea-hawks sailed with sheathed beaks. On the second day, a
sail drew near, nearer, and picked me up at last. It was the
devious-cruising Rachel, that in her retracing search after her missing
children, only found another orphan.

In other words :

Line 1 EMPTY
Line 2 FIRST line of text
Line 20,707 LAST line of text
Line 20,708 = \z

As this file seems already wrapped to 71 chars, I decided to do, FIRST, an intelligent un-wrapping !

I verified that there was no tabulation, nor any trailing space in the Moby_ORG.txt file
Then I noticed that 43 lines began with one or two space characters, without any real utility. So, I ran the Edit > Blanck operations > Trim Trailing Space option
To get a correct un-wrapping process, we need to use the following regex S/R :
- SEARCH (?-s).+\K\R(?=.+) ( Do not insert a ^ character between the parts (?-s) and .+ ) of this regex ! )
- REPLACE \x20
Finally, I saved the changes and renamed the Moby_ORG.txt as Moby_To_Wrap.txt

So, the Moby_To_Wrap.txt file begins and ends as below :

Call me Ishmael. Some years ago—never mind how long precisely—having little ...

There now is your insular city of the Manhattoes, belted round by wharves as ...

Circumambulate the city of a dreamy Sabbath afternoon. Go from Corlears Hook ...
...
...
...
...
“AND I ONLY AM ESCAPED ALONE TO TELL THEE” Job.

The drama’s done. Why then here does any one step forth?—Because one ...

It so chanced, that after the Parsee’s disappearance, I was he whom ...

In other words :

Line 1 EMPTY
Line 2 FIRST line of text
Line 4,884 LAST line of text
Line 4,885 = \z

The second line of your script is always :

local maxLineLength = 78

And the Settings > Preferences... Margins/Border/Edge > Vertival Edge Settings only contains the 78 value

Then I copied the Moby_ORG.txt file three times, as Moby_Regex.txt, Moby_Lua.txt and Moby_Ctrl-I.txt and I applied :

Your script against the Moby_Lua.txt file,
The Edit > Line Operations > Slipt Lines option against the Moby_Ctrl-I.txt
The following regex S/R against the Moby_Regex.txt
- SEARCH [\x20\r\n]*\z|(?-s)^(?=.{79,}).{1,78}\K(?:\x20*\R|\x20+)
- REPLACE \r\n

Upon comparison, it turns out that these three files are completely different ! Compared to the Moby_Regex.txt file , I noticed that your Moby_Lua.txt sometimes grasps :

More than it should, as, for example, in the lines :

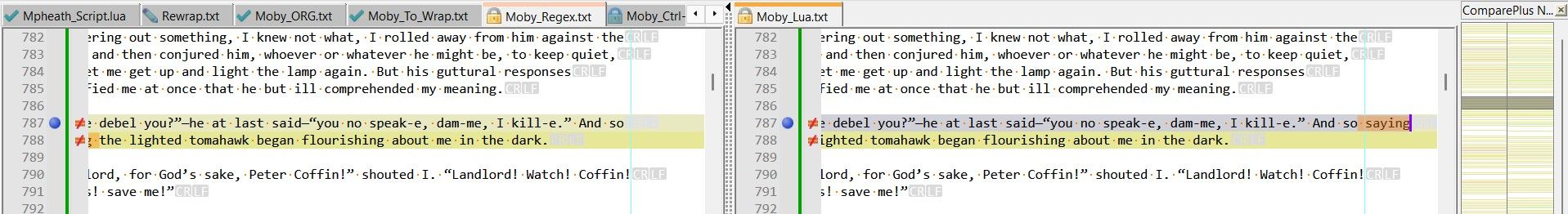

“Who-e debel you?”—he at last said—“you no speak-e, dam-me, I kill-e.” And so saying with a wrapping after 84 chars

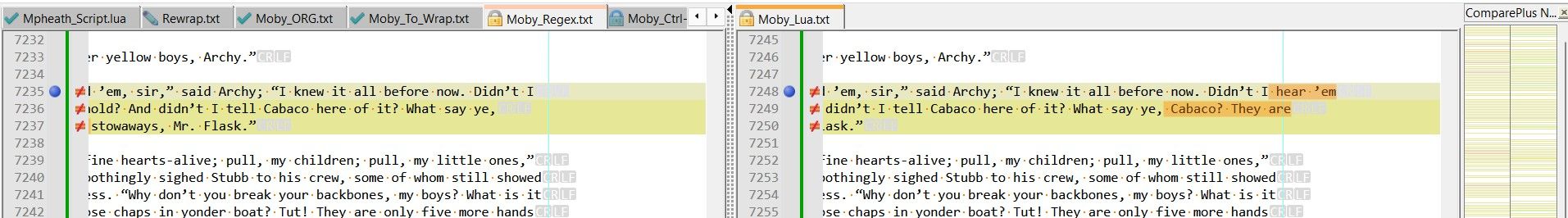

“Oh, I don’t mind ’em, sir,” said Archy; “I knew it all before now. Didn’t I hear ’em with a wrapping after 85 chars

Less than it should, as, for example, in lines :

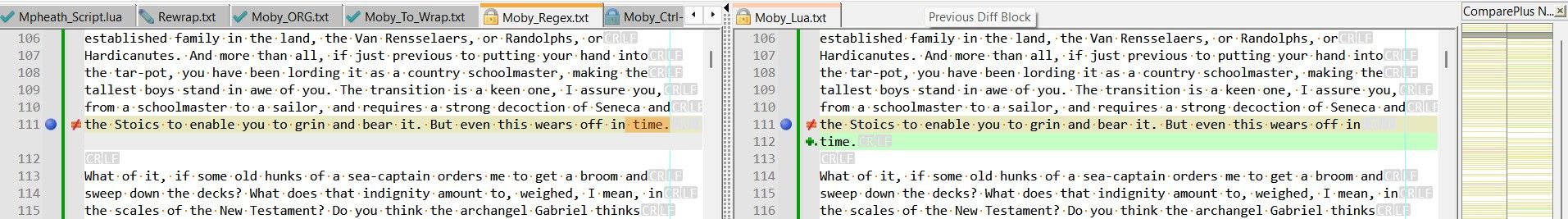

the Stoics to enable you to grin and bear it. But even this wears off in, with a wrapping after 72 chars

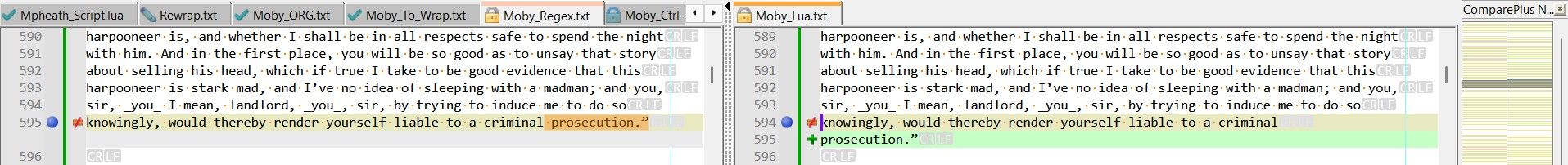

knowingly, would thereby render yourself liable to a criminal, with a wrapping after 61 chars

Not important, though. Just in case you would work on your script a little more !

Now, using this long text ( the Moby_To Rewrap.txt file ), I confirm that the regex, below, exactly mimics the Ctrl + I feature :

SEARCH (?-s)^(?=.{78})(?:.{1,76}\x20|.{77})\K

REPLACE \r\n for Windows files or \n for Unix files

However, note that the Edit > Line Operations > Split lines operation leaves a trailing space on all lines of a paragrah but the last one !

I think that further investigation would be useless and I’ll personally just use the method, shown at the beginning of this post, when I need to wrap any text !

Best Regards,

guy038

Oh, I almost forgot something important :

When you select some text or all contents of a file and execute the Edit > Line Operations > Split Lines option :

The View > Word wrap must be OFF
The View > Show Symbol must be OFF
