Search++: A work in progress

Coises

Do you have an explanation ?

This is exceedingly odd. Thank you for identifying and describing it clearly. I do not have an explanation, but I think it has to be a bug (and not just a quirk of regex). Here’s why.

We can’t compare the same test in native Notepad++ search, because Mark doesn’t count or bookmark null matches. (The same with Count and Find All: in Notepad++ native search, they ignore null matches.)

However, single-step Find does identify null matches in both engines. In Notepad++ native search using Find Next, your expression (?-s)^((?!test).)*\R|\z identifies eight matches. The last is at the end of the file and shows the ^ zero length match message.

In Search++ Regex with Find, it only finds seven.

What is even more peculiar is if you switch to the ICU engine and Mark the same expressions. In ICU as in Regex, \z alone does as you would expect, bookmarking the last line and showing the message “Found 1 match (0 marked, 1 null).” ICU also does the same as Regex with (?-s)^((?!test).)*\R, marking and bookmarking seven lines, exactly as you would expect.

Adding the |\z to the end changes nothing in Regex, though you would expect to see “Found 8 matches (7 marked, 1 null)” and a bookmark on the last line. In ICU it not only doesn’t bookmark the last line, it finds and bookmarks nine matches, marking the LF, but not the CR or the rest of the line, on the lines containing test!

As far as I can tell (I might not have tested every possible combination yet), both Regex and ICU are self-consistent in that they Find and Count and Find All the same things they mark/bookmark.

Why adding |\z causes such strange behavior — in ICU even leading to new matches in the middle of the file — as yet I have no clue.

Coises

@guy038 said:

Do you have an explanation ?

and I wrote:

I think it has to be a bug

It is, and it’s a fairly simple error in my logic. If a match ends at the end of the file (or the end of a selection or a span of marked text, if you’re searching within one of those), the search ends (or moves on to the next selection or span of marked text) without checking whether the expression can match null there. It will be fixed in the next release.

Why adding |\z causes such strange behavior — in ICU even leading to new matches in the middle of the file — as yet I have no clue.

The code supporting ICU search has the same logic error as the Regex search does, but there’s an additional oddity which seems to be built into ICU’s regular expression search. As best I can tell, it treats the circumflex (^) differently when it is the first element of the only alternative and in all other contexts. As an example, see the difference between marking ^\n (which matches nothing in Guy’s test text) and ^\n|Q (which matches the line feed at the end of each of the first nine lines).

Note: I suggested using Mark to show this because Scintilla will not allow a selection to encompass only part of a line ending, so it’s less clear what is happening with Select or stepwise Find commands. The Search++ results list doesn’t have the option to show line endings — perhaps it should! — so Find All is also unclear.

I’m not sure if this is expected behavior. ICU describes the circumflex as “Match at the beginning of a line” but, as far as I can find, says nothing about it behaving differently in different positions or expressions.

guy038

Hi, @coises, @thomas-knoefel and All,

FIRST test :

The only way to bookmark the last empty line 10, that I found, is to use the regex ^((?!test).)*$ again my example text, below :


bla
blah
This is the test to do
bla
blah
test
bla
blah

Some observations :

Using Search++, in mode Regex, this regex counts 8 matches, whose line 1 with ONLY a small blue triangle at bottom of line 1 and the last empty line 10 with the calltip ^ zero length match
Using Columns++, this regex counts also 8 matches, but, this time, the first line returns, instead, the calltip ^ zero length match
Using Search++, in mode ICU this regex counts 7 matches, whose line 1 with ONLY a small blue triangle at bottom of line 1. So the line 10 is not a match

SECOND test :

Paste the text below in a new tab and search, in regex mode, for the regex ^abc

abc

abcabc    0011
abc       0012

abcabc   0085
 abc       2028
 abc       2029
abc         After the above \r\n
====================================
	abc     0009
 abc        0020
 abc     00A0
abc      00AD
 abc     2000
 abc      200A
 abc    202F
 abc     205F
　abc     3000
abc     200B
‌abc     200C
‍abc      200D
⁠abc       2060
abc   FEFF
￹abc      FFFA
￺abc      FFFB
￻abc      FFFC

May be, after pasting, you’ll have to change the line 2 which needs to be an LF char ONLY and line 5 which needs to be an CR char ONLY !

With N++ and MultiReplace the ^abc regex counts 8 matches. So a beginning of line is seen :
- At the very beginning of the file
- After a LF character
- After a FF character
- After a CR character
- After a NEL character
- After a LS character
- After a PS character
- After a \r\n string, in line 9
With the Columns++ and Search++ Regex the ^abc regex counts 4 matches. So a beginning of line is seen :
- At the very beginning of the file
- After a LF character
- After a CR character
- After a \r\n string, in line 9
With Search++ ICU, the ^abc counts 9 matches. So a beginning of line is seen, like with N++ and MultiReplace and, also, after a VT character.

Seemingly, in ICU mode, the \r\n couple is not considered as one char. Thus, the regex ^\n|Q do see the CR character as a beginning of line (^). However, in this case, I do not understand why the ^\n regex finds nothing at all !

THIRD test

Note that in Search++ Settings, I checked the Always unmark all text before Mark command. (Otherwise add to existing marked text.) option.
In addition, I chose the Bookmark lines when marking text option, in the Tools menu

Thus, in all cases, all the marked text and all the bookmarked lines should be wiped out before a new Mark command.

Using my example text, described above, I marked, in ICU mode, all the lines which match the regex ^\n|Q, as shown in the snapshot below :

Then, I simply searched for the ^\n regex. As noticed above, this regex finds nothing. However, after clicking on the Mark in Whole document option, the previous marks and bookmarks remain unchanged ?

I expected no marked text and no bookmrked line ! I suppose it’s a bug.

Best Regards

guy038

guy038

Hello, @coises,

I said, at the end of the second test section :

Thus, the regex ^\n|Q do see the CR character as a beginning of line (^)

I didn’t express myself clearly. I should have written :

Thus, the regex ^\n|Q do see the transition between each CR character to its next LF character as a beginning of line (^)

BR

guy038

Coises

@guy038 said:

The only way to bookmark the last empty line 10, that I found, is to use the regex ^((?!test).)*$

Yes, that’s the bug you found. The precise conditions are that if a match includes the last character in the file, Search++ fails to check for the possibility of a null match at the end of the file. That will be fixed in the next release.

Using Search++, in mode Regex, this regex counts 8 matches, whose line 1 with ONLY a small blue triangle at bottom of line 1 and the last empty line 10 with the calltip ^ zero length match

Yes. Where possible I use the small triangle to mark a zero-length match. There are two situations where that isn’t possible, due to Scintilla limitations: when the match is at the end of a line, before the line ending characters, and line ending characters are not shown; and when the match is at the very end of the file. In those cases, I use the ^ zero length match banner instead.

I use triangles for zero length matches in the Search++ results list and with the Show command, too. The same limitations apply with Show, but because call tips disappear when you interact with the text, I can’t really do anything about the indicators you can’t see. In the results list you can always see them because I can safely change some settings so that I can use line ending characters that Scintilla considers displayed, but that don’t actually show anything you can see.

Using Columns++, this regex counts also 8 matches, but, this time, the first line returns, instead, the calltip ^ zero length match

Yes, I hadn’t thought of the triangle method yet when I wrote Columns++.

Using Search++, in mode ICU this regex counts 7 matches, whose line 1 with ONLY a small blue triangle at bottom of line 1. So the line 10 is not a match

As best I can tell, ICU’s regex engine does not consider the position following the last character in the document to be the beginning of line, regardless of whether the last character is a line ending character. That makes sense, really, but it doesn’t conform to the way Scintilla lays out lines. So your expression doesn’t match because the circumflex doesn’t match.

With N++ and MultiReplace the ^abc regex counts 8 matches. So a beginning of line is seen :

At the very beginning of the file

After a LF character

After a FF character

After a CR character

After a NEL character

After a LS character

After a PS character

After a \r\n string, in line 9

With the Columns++ and Search++ Regex the ^abc regex counts 4 matches. So a beginning of line is seen :

At the very beginning of the file

After a LF character

After a CR character

After a \r\n string, in line 9

With Search++ ICU, the ^abc counts 9 matches. So a beginning of line is seen, like with N++ and MultiReplace and, also, after a VT character.

Yes, Columns++ and Search++ Regex do their best (I think they succeed) to treat the same things as line endings that are visible as line endings in Notepad++. So, for example, in your Total_Chars.txt, ^ matches 3 times in Columns++ and in Search++ Regex; it matches 13 times in Search++ ICU; and in Notepad++ native search, if you use Find Next (since Count ignores null matches) and count manually (making sure not to miss the match at the very beginning of the file) there are 7 matches.

Likewise, (?-s:(?!.))(?s:.) produces 6 matches in Notepad++ (you can use Count for this one), 2 matches in Columns++ and Search++ Regex, and 7 matches in Search++ ICU.

I’m not sure yet what causes the extra matches for ^ in ICU; it could be something I’ve done wrong in preparing the string, it could be a bug in ICU4C, or could just be something I don’t understand.

Seemingly, in ICU mode, the \r\n couple is not considered as one char. Thus, the regex ^\n|Q do see the CR character as a beginning of line (^). However, in this case, I do not understand why the ^\n regex finds nothing at all !

ICU appears to treat ^ differently in different expressions. So far, it looks to me as if, when it is the first thing to match in the only alternative, it treats CRLF as one, but when it’s anywhere else, it treats CR and LF each as line ending characters even when they are together in that order. That’s just from trying to infer a pattern behind what I’ve observed; I can’t find any documentation of such a thing. It could be a bug, or just something I don’t know.

Then, I simply searched for the ^\n regex. As noticed above, this regex finds nothing. However, after clicking on the Mark in Whole document option, the previous marks and bookmarks remain unchanged ?

I expected no marked text and no bookmrked line ! I suppose it’s a bug.

It is working as intended, but perhaps the design is confusing. I had to keep the text in the Settings dialog reasonably brief, but I see I didn’t describe the details correctly in the help.

Existing marks (and bookmarks, if applicable) are cleared if the command is successful, meaning it finds at least one match. (Internally, it waits until it finds the first match and only clears the existing marks after it has found the first match, but before it marks it.) If there is an error, or if no match is found, nothing is cleared.

Since you can’t “undo” changes in marks and bookmarks, I thought that at least in the case where someone mistypes a search string resulting in no matches, it would be better not to lose the marks (or selections, or shown text and lines, as the case might be), so one could easily try again.

guy038

Hello, @coises,

You said, at the end of my last post :

Existing marks (and bookmarks, if applicable) are cleared if the command is successful, meaning it finds at least one match. (Internally, it waits until it finds the first match and only clears the existing marks after it has found the first match, but before it marks it.) If there is an error, or if no match is found, nothing is cleared.

I verified that if I, simultaneously, check the third options :

☑ Always clear selections before Select command. (Otherwise add to existing selections.)
☑ Always unmark all text before Mark command. (Otherwise add to existing marked text.)
☑ Always hide all lines and remove Show style from text before Show command

Nothing is cleared if current search does not find any match or finds an error, regarding selections, marks, and shown text

Therefore, I think it would be a good idea to mention this fact in the Search++ documentation, within the cleaning section of Search++ settings !

Best Regards

guy038

Thomas Knoefel

Hi @guy038,

MultiReplace doesn’t use a regex engine of its own: its searches run through Notepad++'s Scintilla, i.e. through Notepad++'s Boost regex engine. So ^ and $ see the same line breaks as the native Find dialog, which with Boost also includes FF, NEL, LS and PS. That is intended: MultiReplace should always find the same matches as Notepad++ itself.

Coises

@astewart77, @guy038 and anyone else who cares to comment:

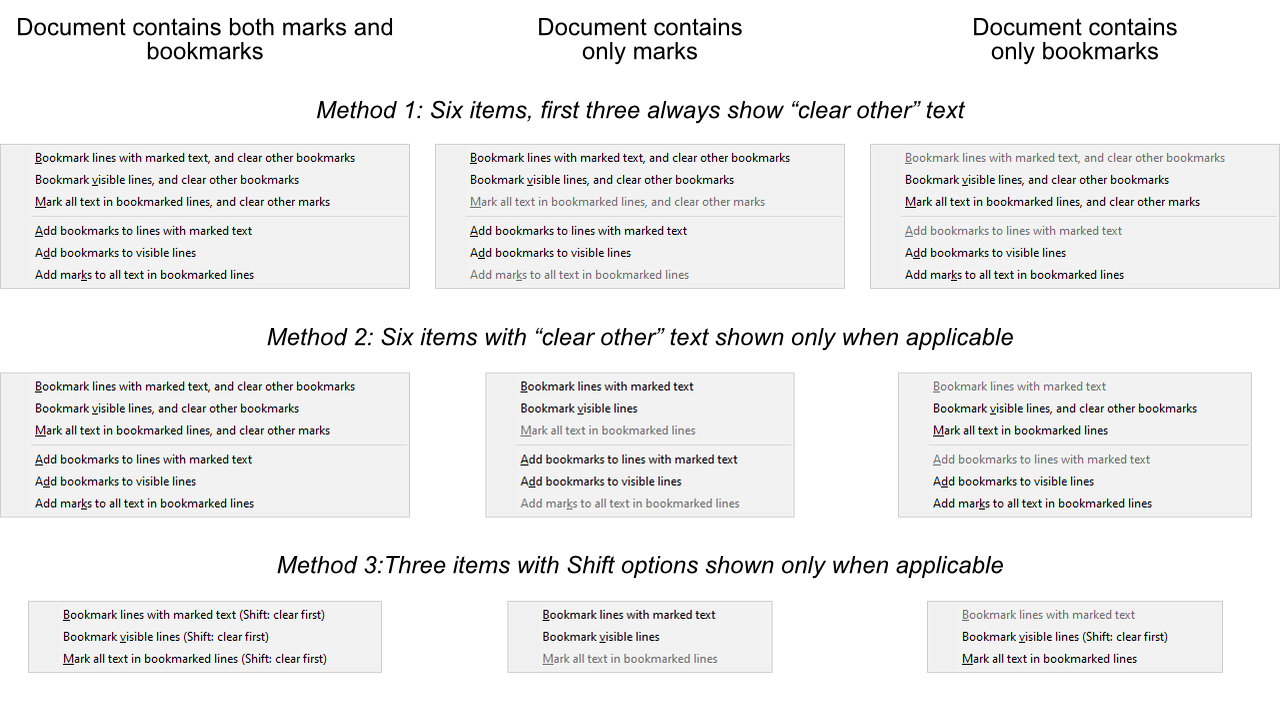

As noted, I still didn’t get the Synchronize marks and bookmarks sub-menu right in version 0.7.1. I am interested if you have any preference among these three possibilities:

or if you would suggest anything else?

As elsewhere, right-click would be equivalent to Shift+click.

guy038

Hi, @coises, @astewart77 and All,

Ah,…, personally, I’m voting for the Methiod 3 as we are already used to the Shift behaviour. In addition, it remains only three items in the menu which appears more clear !

This is coherent with the Mark selected text (Shift: clear first) and Mark shown text (Shift: clear first) options, in the Tools menu !

Best Regards,

guy038

astewart77

I also vote for Method 3.

Method 2 has too much text changing from use to use. For me, the only advantage to Method 1 is being a bit easier to automate with AutoHotkey.
